| Test Functionality | Manual bubble point test; basic bubble point test; enhanced bubble point test; pressure holding test; diffusion flow test Test; Water immersion test; Ultrafiltration membrane package test; |
| Audit trail | Multiple event logs, exportable but not editable |
| Pre-stored plans | 10 00 groups |
| Audit trail record storage | ≥5 years storage |
| Number of users | 10 00 |
| Operating system | WindowsCE |
| Record backup | Support USB flash drive to export data (including test curves); |
| Display | - definition 10.1 " color touch screen; |
| Serial port connection method | RS232 serial port, USB port , etc. |
| Usage | Online/Offline |
| Scope of application | Symmetrical/asymmetric membranes, needle filters, capsule filters, flat plate filters, cartridge filters, ultrafiltration membrane packs, ultrafiltration columns; |
| Power supply | 220/110VAC |
| Dimensions | 240(W)320(L)250(H)mm |
| Pressure range | 100~10000mbar |
| Weight | 7.5Kg |
| Test scope | Basic bubble point: 100～10000mbar Diffusion flow: 1~ 1000ml /min Water intrusion: 0.01~100ml/min |
| Operating conditions | Ambient temperature: +5°C to +50°C Relative humidity: 10-80% |
| Test accuracy | Basic bubble point: ± 50mbar Diffusion flow: ±4% Water immersion: ±0.01% |
| Print content | Object attributes, test conditions, test content, test results, test curve, test time, electronic signature |
| Testing time | Basic bubble point: 3 to 10 minutes Diffusion flow: 6 to 10 minutes Water immersion: 6 to 10 minutes Pressure holding method: 3 to 5 minutes |
| Storage space | 16G, 1 million historical records |
| Permission levels | Level 4 |
| Display | 10. 1- inch color touch screen |
| External interface | RS232/RS485/USB , etc. |
| Language selection | Chinese/English |

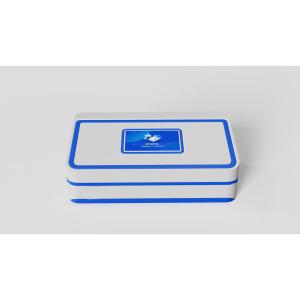

Filter Integrity Tester helps you accurately and reliably test the integrity of filters and process equipment . It offers a simple, intuitive user experience and flexible, customizable settings to perfectly meet your needs .
l High Accuracy: Imported high-precision pressure sensor, advanced algorithm, RSD < 2%, multi-point calibration, automatic temperature compensation.
l Reliable Stability: Industrial-grade components, IP54 protection, MTBF > 50,000h, 24/7 continuous operation, dual power with UPS support.
l Intelligent Control: 32-bit ARM processor, microsecond response, PID pressure control (±1 mbar), automatic leak detection & calibration.
l Data Integrity & Security: 4-level user permissions, electronic signature, full audit trail, FDA 21 CFR Part 11 & GMP compliant.
l Wide Compatibility: Supports 25mm–300mm membranes, 2.5"–40" pleated cartridges, capsules & HEPA/ULPA filters; multiple test methods (bubble point, diffusion flow, WIT, pressure hold).
l Connectivity & Storage: Standard RS232/USB, optional Profibus/Ethernet, LIMS/SCADA integration, 32GB storage for millions of test records.
l Robust Design: 316L stainless steel gas path, modular structure, operates in 0–50℃ / 10–80%RH environments.
