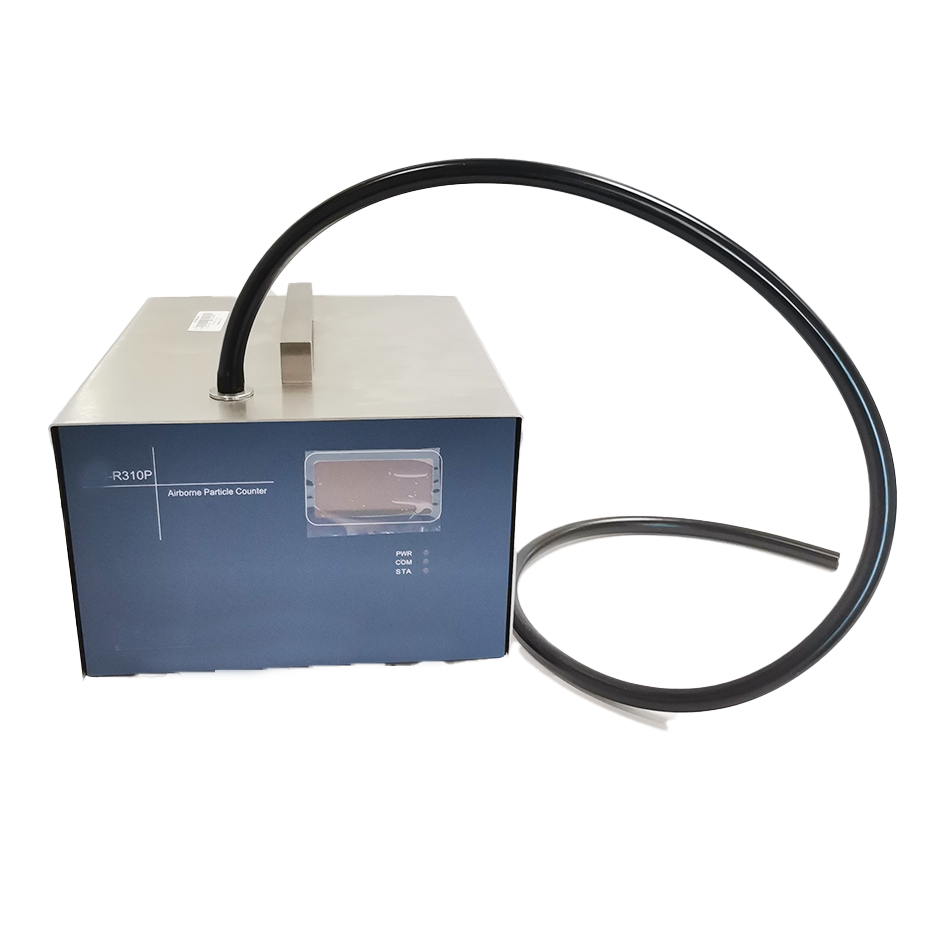

R310P Built-in Pump Online Particle Counter 28.3L/min
The R310P particle sensor can be installed at one or more monitoring points according to the actual site conditions, and the measured data will be displayed directly on the display of each monitoring point. R series dust particle sensors can monitor particles of 0.3μm, 0.5um and 5.0um, and comply with GMP, FDA and ISO21501-4 requirements. Meanwhile, the R series contains several models, so customers can choose the one that suits their needs.
1. Reasonable structure design, compact size, easy installation.
2. Particle size channel: 0.3,0.5,0.7,1.0,3.0,5.0,10.0,25.0 (μm)
3. Sampling flow rate: 1CFM (28.3LPM)
4. Three kinds of status indicator guide:
Power indicator;
Communication indicator;
Measurement status indicator.
5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected.
6. Using foreign original laser diode and vacuum pump, long service life.
7. 2.4 inch OLED display, readings are intuitive and clear.
8. 316 stainless steel case can be ordered.
| Counting efficiency |
50%±20％ @ minimum channel size, 100% ±10％for particles >1.5 X - 2X channel particle size |
| Zero count degree | <1 count/5 minutes (ISO 21501-4 and JIS) |
| Monitoring range | Class 100 - 300,000 |
| Housing material | 304 stainless steel |
| Standards | JIS B9921；ISO21501-4 |
| Operating environment | 10-40℃,20%-95% |
